• Power, Comfort & Adventure in One Folding E-Bike

Whether you need a compact commuter or a fold-and-go adventure bike, the VICTRIP R5 delivers the perfect combination of portability, comfort, and performance. Equipped with a powerful 48V 20Ah LG lithium battery, 250W brushless motor (up to 1000W peak), hydraulic disc brakes, and dual suspension, it's built for city commuting, weekend rides, and light off-road adventures.

• KEY FEATURES

• 250W Brushless Rear Hub Motor (Up to 1000W Peak)

• 48V 20Ah (960Wh) LG Removable Lithium Battery

• Up to 100KM Pedal Assist Range

• Up to 65KM Throttle Range

• 85Nm High Torque

• 20" × 4.0" Fat Tires

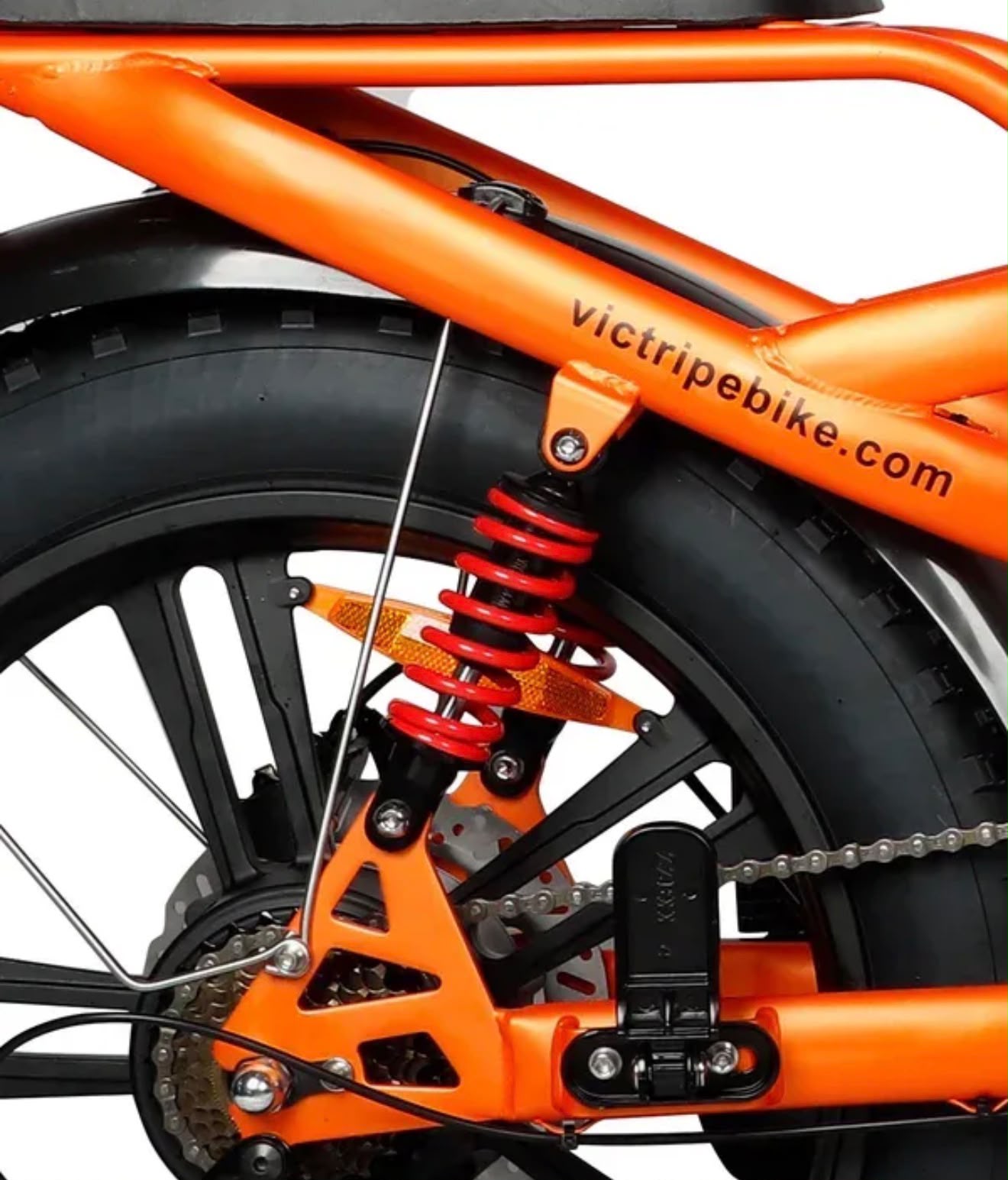

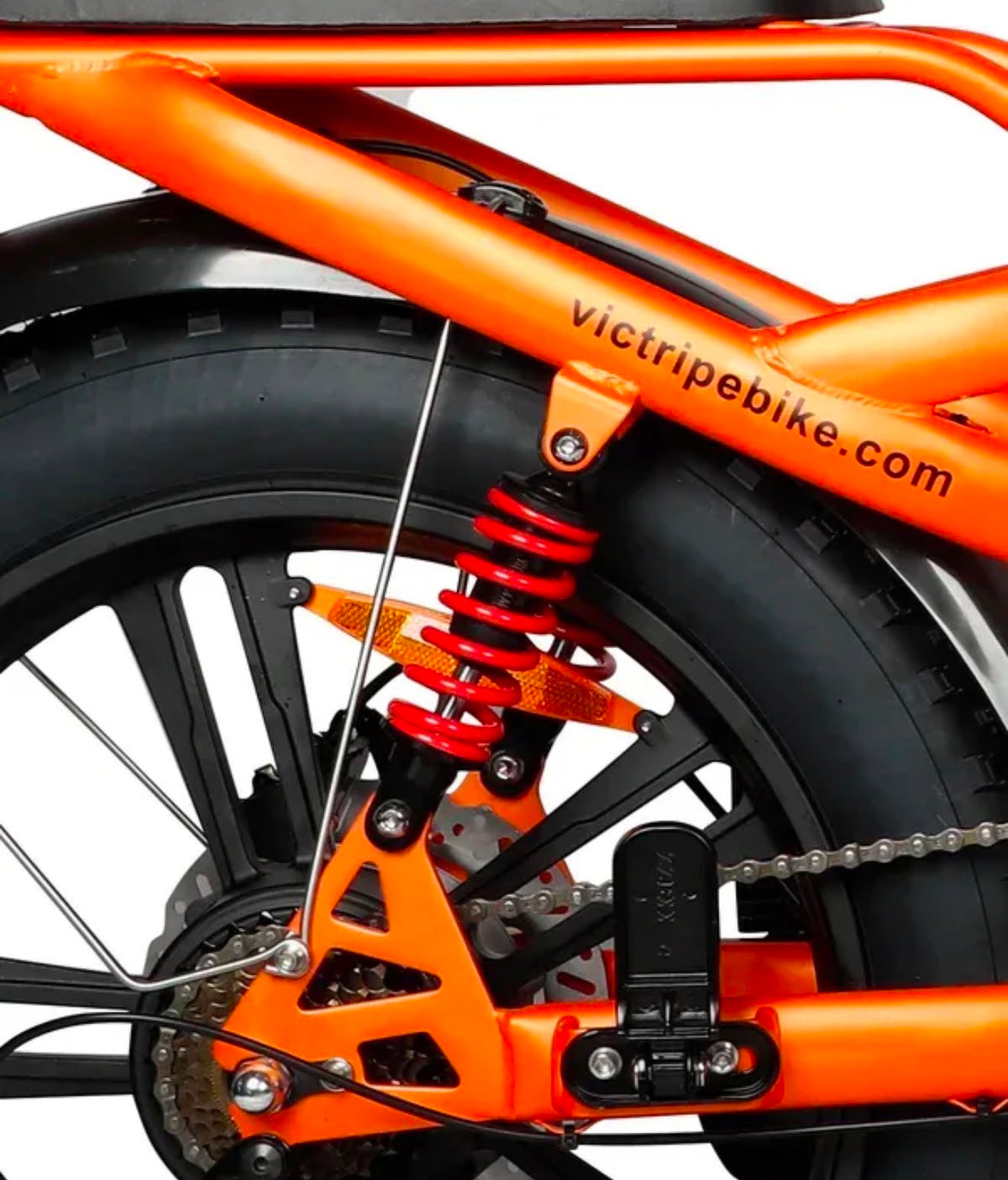

• Front & Rear Dual Suspension

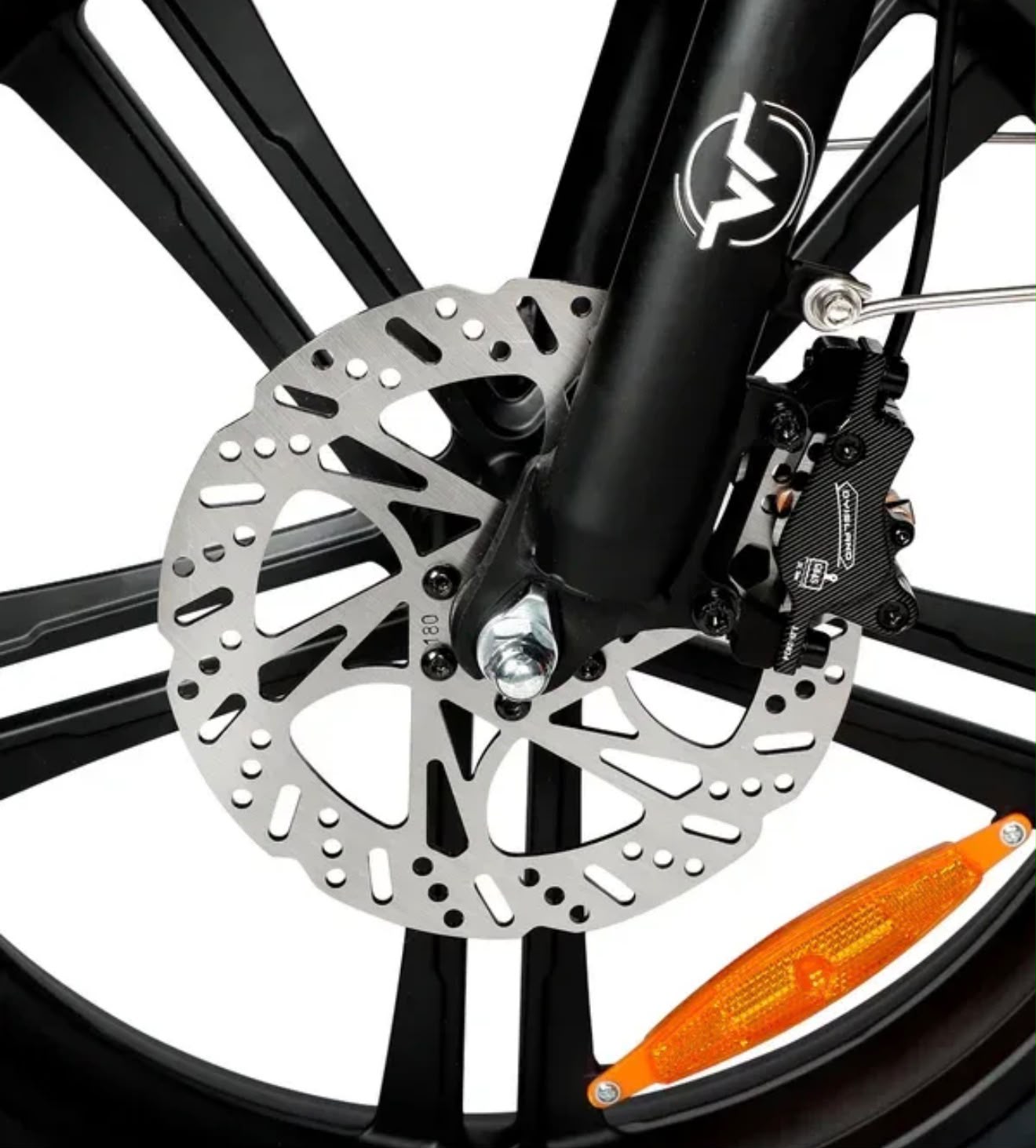

• 180mm Hydraulic Disc Brakes

• Shimano 7-Speed Gear System

• Color LCD Display

• Half-Twist Throttle

• IP65 Waterproof Rating

• 30°–35° Maximum Climbing Ability

• Foldable Frame for Easy Storage & Transport

• Payload Capacity: 180kg (400 lbs)

• Recommended Rider Height: 160–195cm (5'3"–6'5")

• TECHNICAL SPECIFICATIONS

• Brand: VICTRIP

• Model: R5

• Motor: 250W Brushless Rear Hub (Peak 1000W)

• Battery: 48V 20Ah (960Wh) LG Lithium Battery

• Top Speed: 25 km/h

• Torque: 85Nm

• Throttle Range: Up to 65 km

• Pedal Assist Range: Up to 100 km

• Charging Time: 5–6 Hours

• Charger: 48V 3A Lithium Charger

• Controller: 48V 18A

• Display: Color LCD Display

• Transmission: Shimano 7-Speed

• Brakes: 180mm Hydraulic Disc Brakes

• Suspension: Front Adjustable + Rear Dual Suspension

• Tires: 20" × 4.0" Fat Tires

• Water Resistance: IP65

• Maximum Climbing Angle: 30°–35°

• Bike Weight: 34kg (78 lbs)

• Maximum Load Capacity: 180kg (400 lbs)

• GEOMETRY

• Total Length: 69.3 in (176 cm)

• Handlebar Height: 45.28–50 in (115–127 cm)

• Seat Height: 28.3 in (72 cm)

• Seat Length: 15 in (38 cm)

• Handlebar Width: 24.4 in (62 cm)

• Wheelbase: 51.2 in (130 cm)

• Stand-Over Height: 26.4 in (67 cm)

• Wheel Diameter: 23.2 in (59 cm)

• Folded Size: 37 × 25 × 36 in (94 × 64 × 91 cm)



• RIDING MODES

• Pure Electric Mode

• Pedal Assist Mode

• Manual Pedal Mode

• Walking Assist Mode

• PACKAGE INCLUDES

• 1 × VICTRIP R5 Electric Bike

• 1 × 48V 20Ah LG Battery

• 1 × 48V 3A Battery Charger

• 1 × Color LCD Display

• 1 × Rear Passenger Seat & Backrest

• 1 Pair × Passenger Footrests

• Front & Rear Fenders

• Assembly Tools

• User Manual

• 4 Keys

• Reflective Safety Vest

• IMPORTANT

Maximum range and speed may vary depending on rider weight, terrain, weather conditions, tire pressure, riding mode, and battery level. Always follow your local e-bike regulations before riding on public roads.
